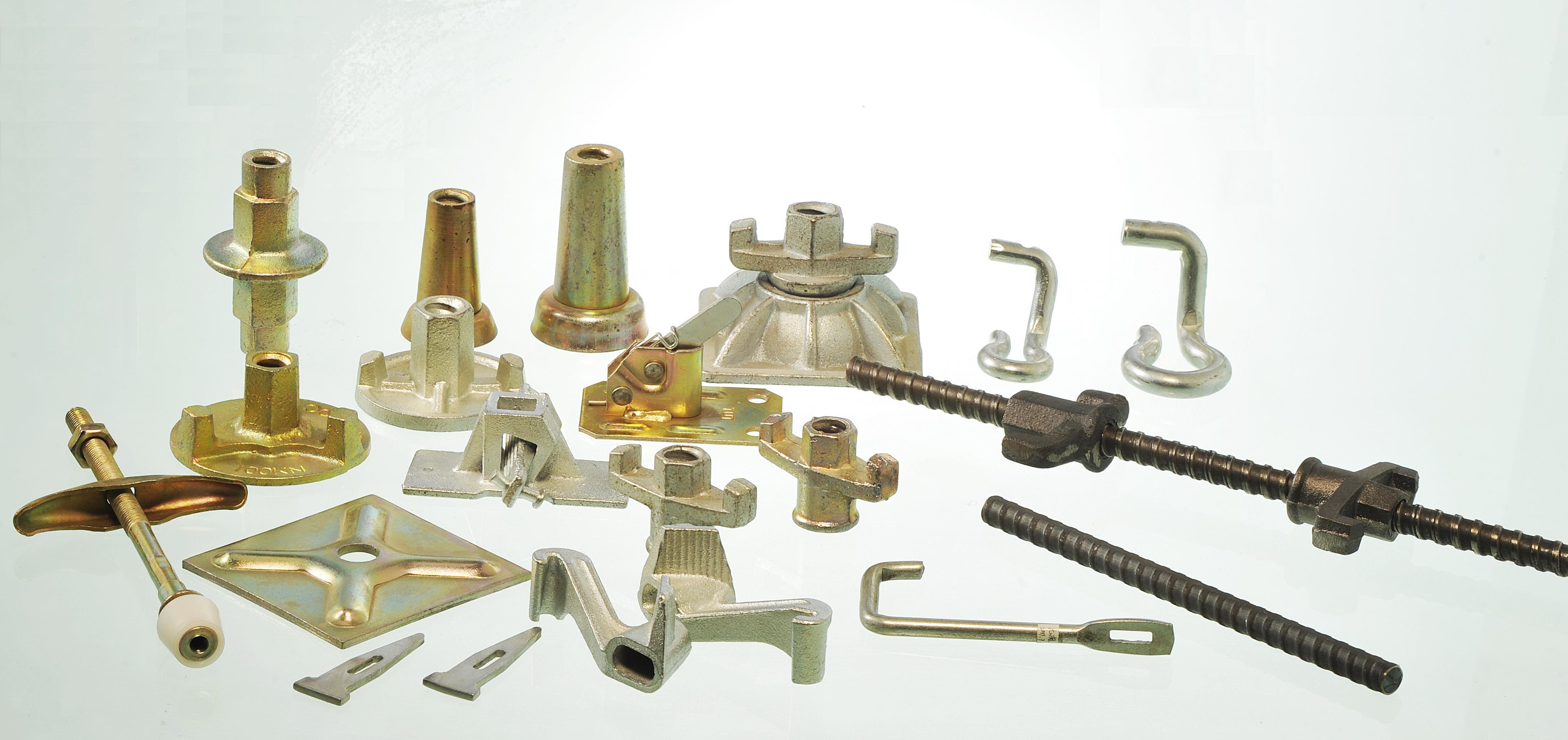

Formwork Accessories

Wing Nut Material: Cast Iron /SG
Iron Weight: 0.320 kg
Working Load: 90 KN

Forged Wing Nut Material:
EN – 8
Weight: 0.350 kg
Working Load: 90 KN

Three Wing Anchor Nut Material: Cast Iron / SG Iron Size: 70mm Weight: 0.460 kg
Working Load: 90 KN

Two Wing Anchor Nut Material: Cast Iron /SG Iron Size: Ø 70 /100mm
Weight: 0.400/0.590 kg
Working Load: 90 KN

Water Barrier Material:
Malleable
Cast Iron/SG
Iron Size: 120mm Length
Weight: 0.500 kg

Water Barrier with Disk Material:
Cast Iron /SG
Iron Size: 116mm Length
Weight: 0.500 kg

Tie Bar Connector Material:
Mild Steel Size:
100mm/105 mm
Weight: 0.450/0.472 kg

Hexagonal Nut Material:
Mild Steel Size:
25/30/50/70 mm.
Weight: 0.105/0.126 kg
0.210/0.294kg

Wedge Clamp Material: High Quality Steel (Casted Body & Forged Wedge)
Size: Ø 4-10 mm / Ø 7- 12 mm
Weight: 0.380 / 0.490 kg

Steel Cone Material:
ST 37
Size: 90mm Length
Weight: 0.600 kg

Waller Plate
Material: ST 37
Size: 120 x 120 x 6/10mm
Weight: 0.660 / 1.10 kg

Cold Rolled Tie Rod Material: EN – 8 Size: Ø 15 mm, upto 6mtr. Length
Working Load: 90 KN
Ultimateload 140/120 KN
Weight: 1.47 kg/m
